SediVue Dx Urine Sediment Analyser

The new standard for urine sediment analysis

  • Delivers consistent, accurate results in approximately three minutes* from only 165 μl (four–five drops) of fresh urine.
  • Examines the equivalent of 45 high-power fields, then identifies and classifies elements within the sediment.

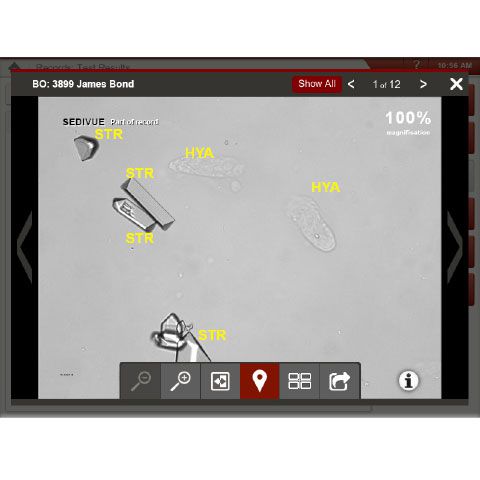

  • Produces high-resolution, high-contrast digital images that can be shared in real time.
  • Includes new Neural Network 2.0 upgrade, which enhances accuracy across all 11 parameters.

Contact us

Request a quote

IDEXX considers proper processing of personal data to be highly important. See our Privacy Policy.

Test menu

Blood Cells

Red blood cells (RBCs)
White blood cells (WBCs)

Epithelial cells

Nonsquamous (e.g., transitional cells,
renal tubular cells)




Nonhyaline (e.g., cellular casts, granular casts)


Calcium oxalate dihydrate
Unclassified (all other crystals)

Order SediVue Dx supplies now


Step one

Pipette 165 µl (four-five drops) urine.

Step two

Dispense sample.

Step three

Press start button and walk away.


Precision onboard gravitational centrifuge
  • Spins at a significantly lower force than most in-house centrifuges to preserve delicate casts that external centrifuges break apart and to ensure sample integrity.
  • In 30 seconds, gently deposits formed elements into a monolayer at the bottom of the cartridge (similar to IDEXX reference laboratory methodology).

Inverted microscope with built-in camera
  • Examines the equivalent of 45 high-power fields from beneath the sample to maximise visibility of clinically relevant particles.
  • Captures 70 high-resolution images per run.
  • Autofocuses on each shot for crisp images.
  • Adjusts exposure with each image to ensure optimal contrast.

Neural Network 2.0
  • Uses artificial intelligence, similar to facial recognition software, so the instrument is always improving.
  • Has the ability to learn and train on new data – it’s constantly getting smarter.
  • Leverages a knowledge base of 14 million images submitted from 200,000 patients – 30 times the roughly 450,000 images used to develop the first-generation SediVue Dx analyser.


Dimensions & weight

Width: 12.6 in (320 mm)

Depth: 12.6 in (320 mm)

Height: 13.2 in (336 mm)

Weight: 32 lb (15 kg)

Related products

View and trend all your results

Get a more complete picture of your patient’s health with IDEXX VetConnect PLUS.

Fast, accurate results

See results for total T4, chemistry, electrolytes and more, in one run with the Catalyst One Chemistry Analyser.

Automatically read and capture IDEXX UA Strip results

Save time, eliminate errors and integrate urine chemistry results into the patient’s record with the IDEXX VetLab UA Analyser.


08 51 989566


Access SediVue Dx Urine Sediment Analyser manuals, quick reference guides, and more.

Order tests & supplies

Learn more about ordering directly from IDEXX and order your in-house tests and supplies today.

*For typical samples.
